Description
The container consists of:
1 x OSB2 25mm wooden floor.
1 x galvanized profile sheet roof with 2 support beams.
2 x galvanized profile sheet side walls with 2 support beams (uprights).
4 x red corner pieces for fastening.
1 x front with wicket door, door handle and cylinder lock.
1 x galvanized profile sheet rear wall.
Material container specifications
- Material container is made of 0.75 mm galvanized sheet steel.
- Support columns are made of 2.0 mm galvanized steel.
- Floor is made of 28mm OSB3 wood.

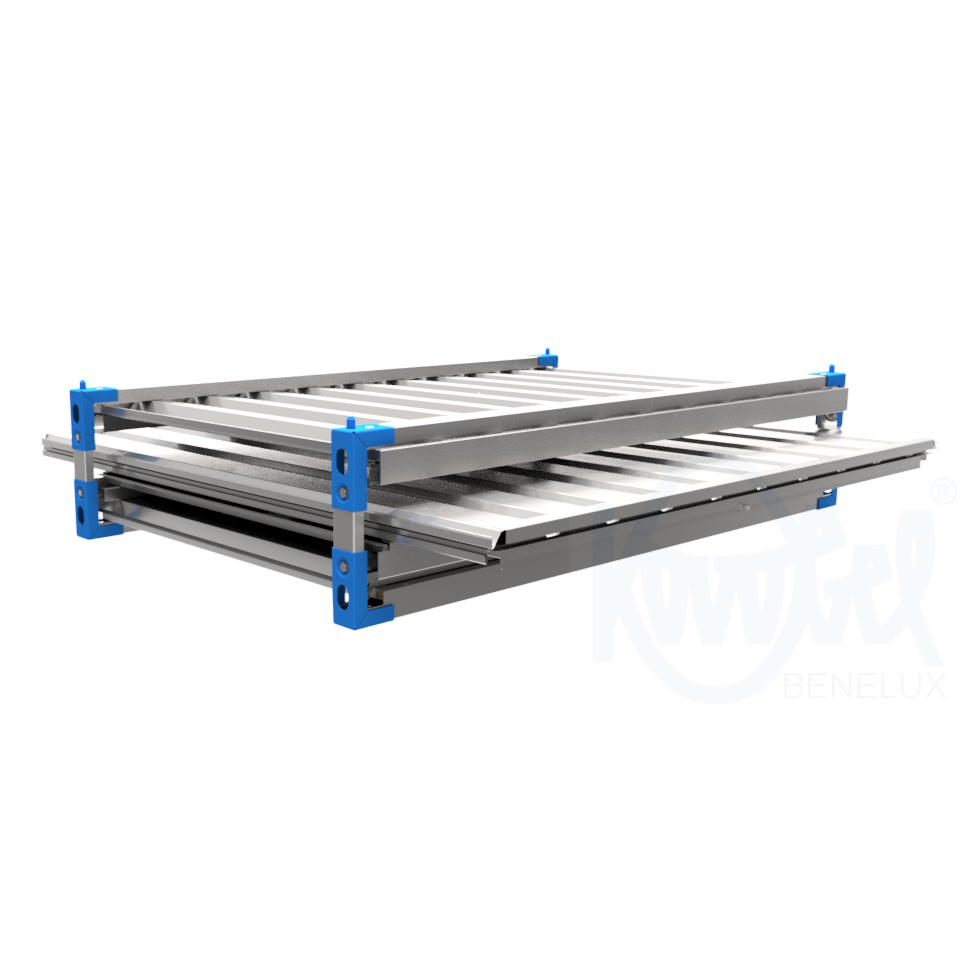

- Logistics/storage: the containers can be easily assembled and disassembled to save on transport costs and storage space.

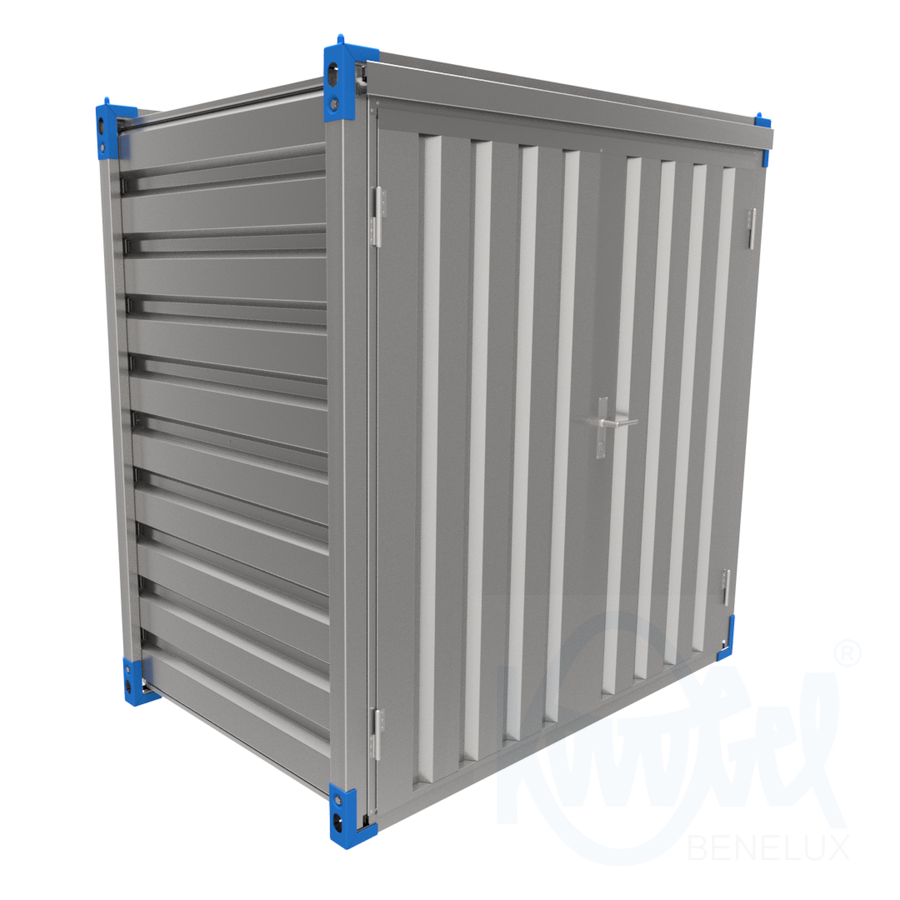

- Material container features the shown door configuration. Doors are equipped with hardware: door handle, cylinder lock, and a door stopper.
- Single door has an opening of 965×1930 mm, double door 1930×1930 mm.
Handling:
It is possible to transport an assembled container by forklift or crane.
For transport by crane, the red corners are equipped with lifting eyes.
Container security:
An optional anti-theft bar is available for every container. This is available for single doors as well as for double doors.
Maximum load: (WLL)
- Capacity with crane 1,500 kg
- Capacity with forklift: 3,000 kg (optional forklift pockets available for floor durability)
- Floor load capacity 500 kg/m²
- Roof capacity with reinforcement set 300 kg/m²
Accessories and special extensions:
The containers can be expanded with various accessories and structural extensions.
These can be found at the bottom of the pages for each container. Various containers with modifications can be found as standard on the website. If you have any questions, you can always call us without obligation.
